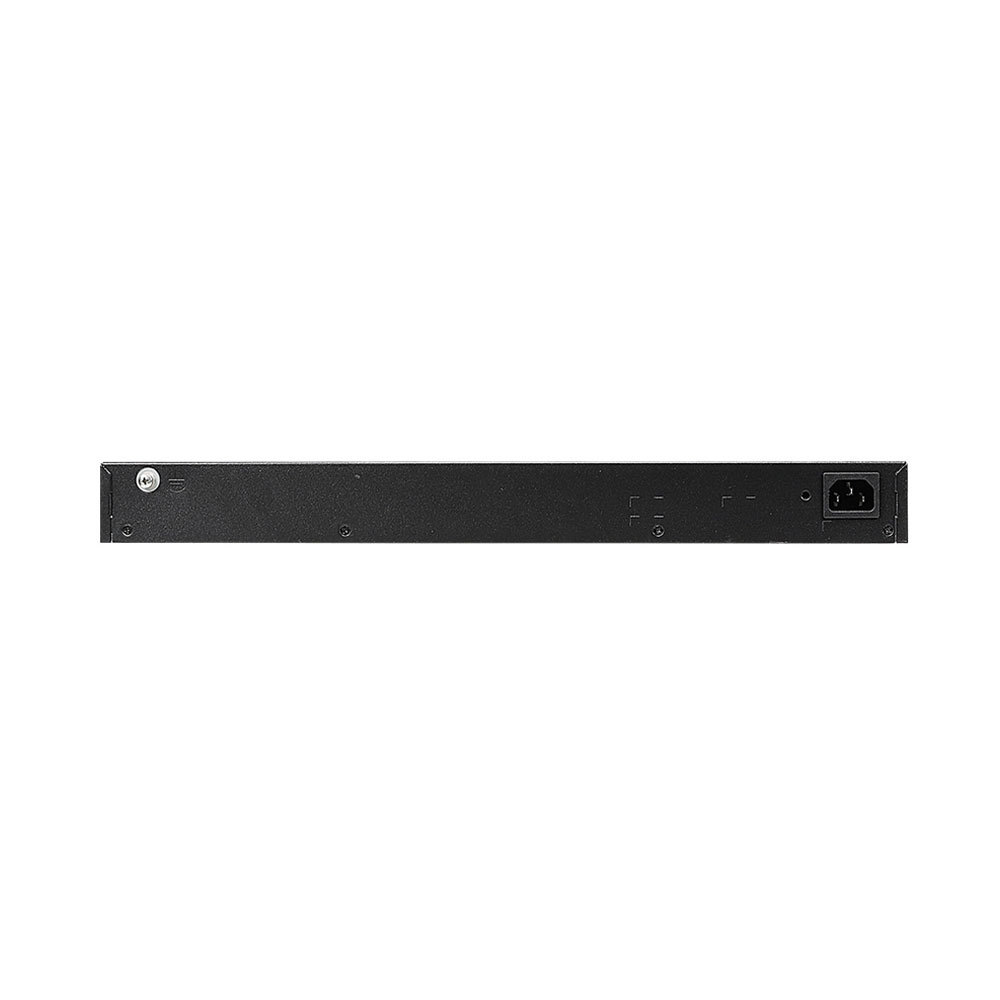

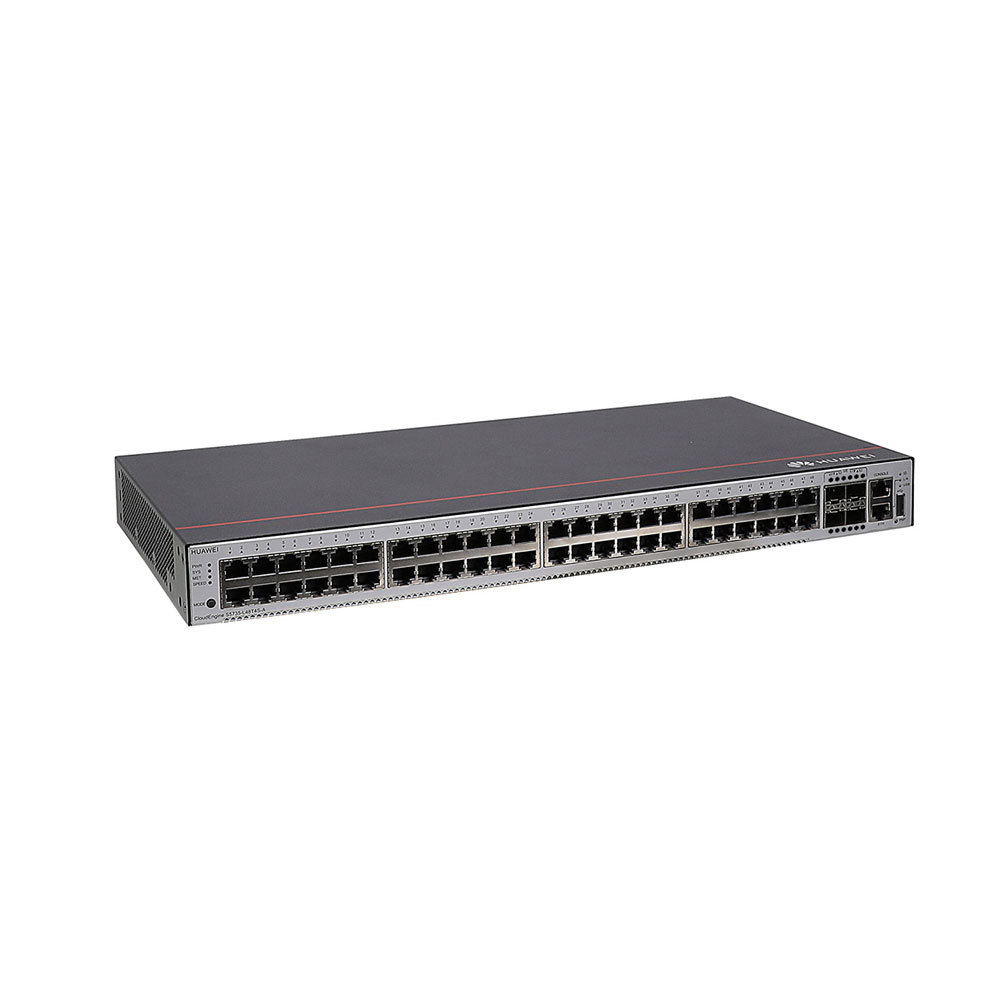

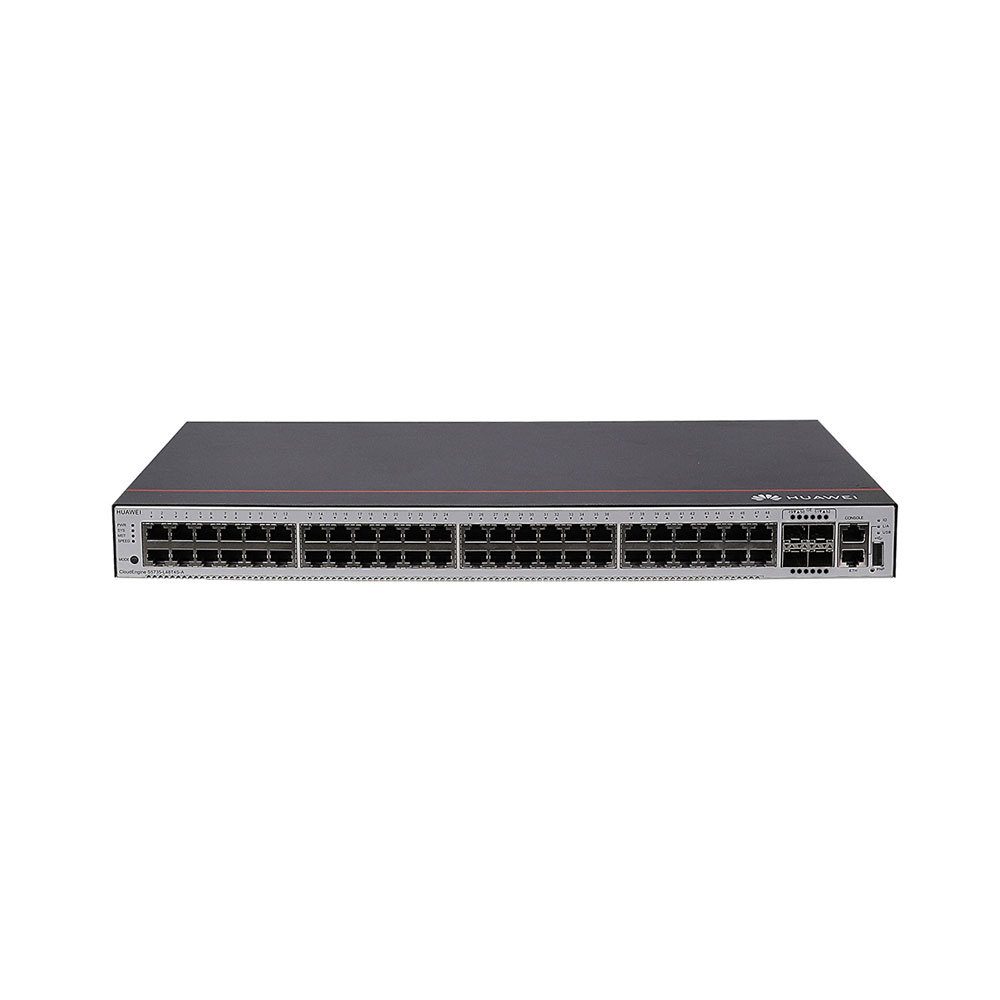

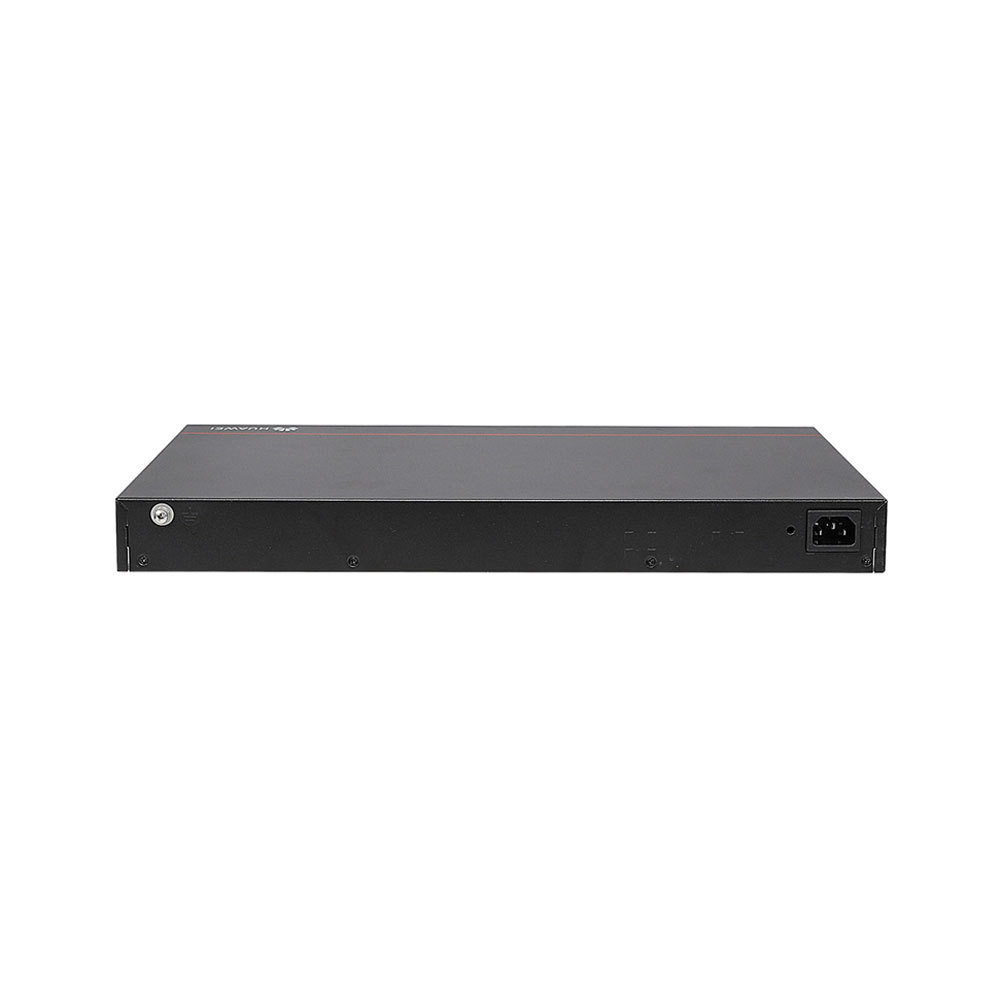

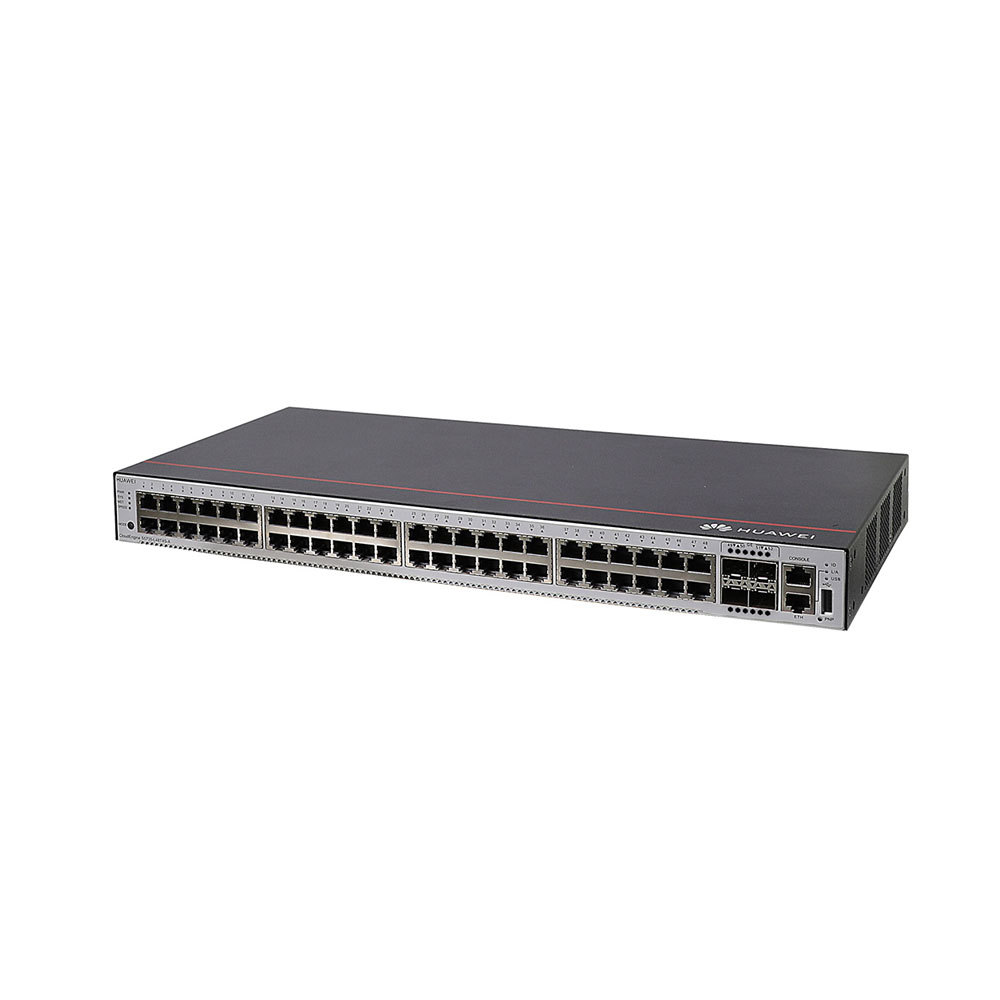

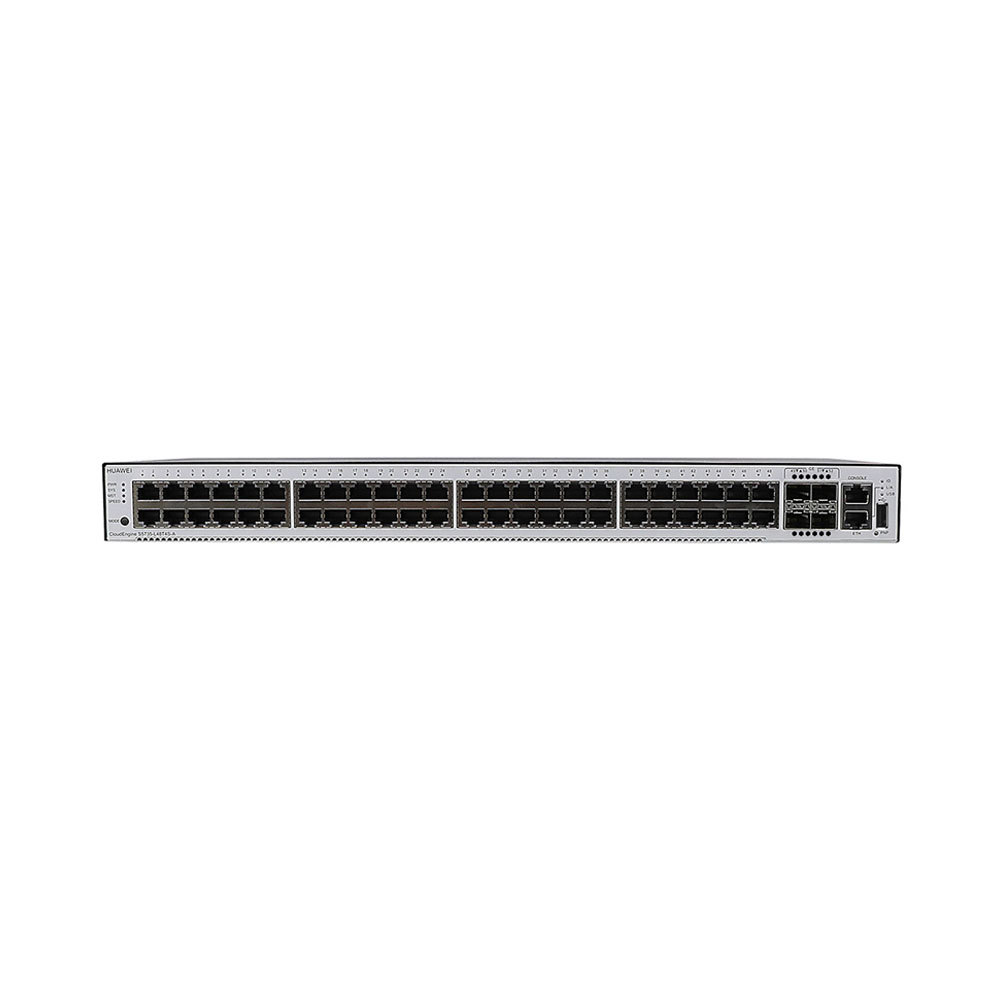

| Specifiction of S5735-L48T4S-A |
| Memory (RAM) |
1 GB |
| Flash |
512 MB in total. To view the available flash memory size, run the display version command. |
| Mean time between failures (MTBF) |
46.36 years |
| Availability |
> 0.99999 |
| Service port surge protection |
Common mode: ±7 kV |
| Power supply surge protection |
±6 kV in differential mode, ±6 kV in common mode |
| Dimensions (H x W x D) |
- Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.7 in.)
- Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)
|
| Weight (with packaging) |
4.42 kg (9.75 lb) |
| Stack ports |
Any 10/100/1000BASE-T ports or 1000BASE-X ports (applicable in V200R019C10 and later versions) |
| RTC |
Not supported |
| RPS |
Not supported |
| PoE |
Not supported |
| Rated voltage range |
- AC input: 100 V AC to 240 V AC, 50/60 Hz
- High-Voltage DC input: 240 V DC
|
| Maximum voltage range |
- AC input: 90 V AC to 264 V AC, 47 Hz to 63 Hz
- High-Voltage DC input: 190 V DC to 290 V DC
|
| Maximum power consumption (100% throughput, full speed of fans) |
53 W |
Typical power consumption (30% of traffic load)
- Tested according to ATIS standard
- EEE enabled
- No PoE power consumption
|
37 W |
| Operating temperature |
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Short-term operating temperature |
-5°C to +55°C (23°F to 131°F) at an altitude of 0-1800 m (0-5906 ft.) |
| Storage temperature |
-40°C to +70°C (-40°F to +158°F) |
| Noise under normal temperature (27°C, sound power) |
< 53.3 dB(A) |
| Relative humidity |
5% to 95%, noncondensing |
| Operating altitude |
0-5000 m (0-16404 ft.) |
| Certification |
- EMC certification
- Safety certification
- Manufacturing certification
|
| Part number |
98010933 |
