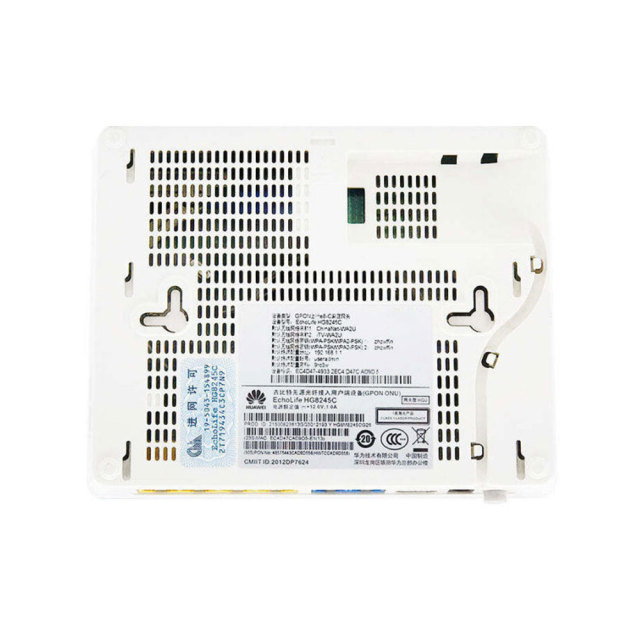

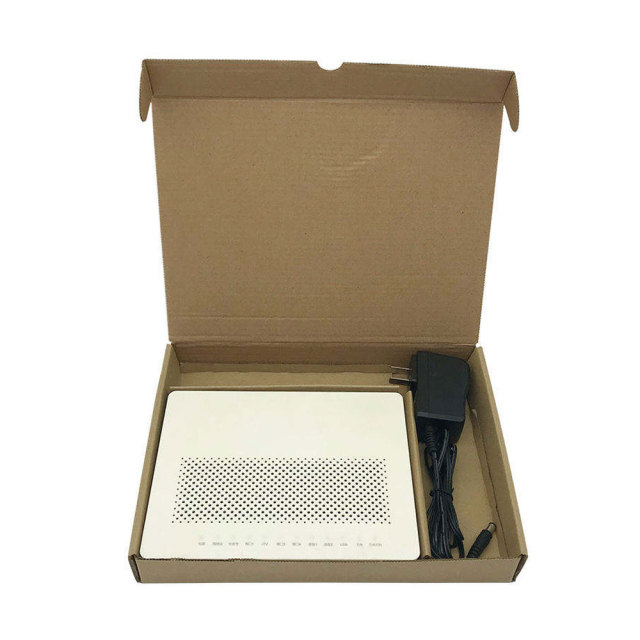

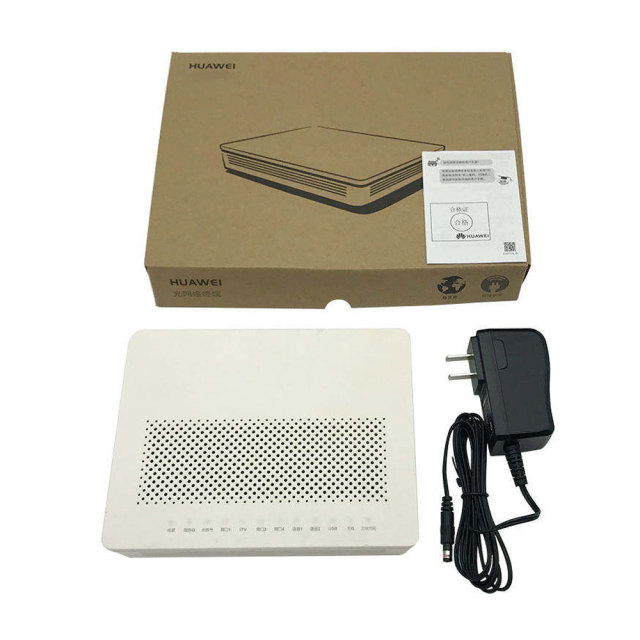

HG8245C FTTH optical network terminal (ONT) is a indoor optical network terminal in Huawei FTTx solution. By using GPON technology, ultra-broadband access is provided for home and SOHO users. It is used with Huawei optical line terminal.
The convergence and high-density features of Huawei OLT can help operators effectively simplify network architecture, reduce network nodes, reduce station sites, computer rooms and other supporting facilities, reduce equipment investment and operation and maintenance costs, and improve network deployment efficiency; at the same time, PON/10G PON/GE/10GE common platform can realize smooth network evolution and protect investment; OLT’s full service access realizes unified access of individuals, enterprises, and base stations, reducing network construction costs, enriching user service experience, and enhancing service stickiness. Increase ARPU value.
| Specification of HG8245C | |
| NNI | GPON |
| Optical interface | SC/UPC interface Class B+ |
| UNI | 1GE+3FE+WiFi+2USB |
| WiFi standard | 2 x 2 MIMO 802.11b/g/n |
| Antenna gain | 2dBi |
| Dimensions(W x D x H) | 156mm×125mm×30mm(Without external antenna) |
| Power supply | Power supply: 11-14V DC, 1A; Input power: 150V~264V AC,50/60Hz |
| Operating temperature and operating humidity | 0°C-+40°C; 5%-95%, non-condensing |
| Cooling | Passive cooling |
| Maximum number of MAC addresses learned | 1024 |
| L2 forwarding capability | 2 Gbit/s downstream (with any length packets); 1 Gbit/s upstream (with any length packets) |
| IPv4 L3 forwarding capability | 2 Gbit/s downstream (with any length packets); 1 Gbit/s upstream (with any length packets) |
| IPv6 L3 forwarding capability | 500 Mbit/s (V300R013C00 to V300R015C00); 2 Gbit/s (V300R015C10 and later) |
Features of ONU
To better understand its functions, here are the key features of an ONU:
Triple Play Services: Supports data, IPTV, and VoIP services, catering to the needs of both residential and commercial users.
Bidirectional Data Transmission: Receives broadcast data from the OLT while sending back user-generated data through assigned transmission windows.
Ethernet Data Buffering: Temporarily stores Ethernet data before transmitting it to the OLT, optimizing data flow.
Remote Management via OAM: Enables remote Operation, Administration, and Maintenance (OAM), allowing service providers to monitor and configure ONUs efficiently.
Security and Quality of Service (QoS): Many ONUs offer enhanced security features and Quality of Service (QoS) support, ensuring reliable performance for different applications.

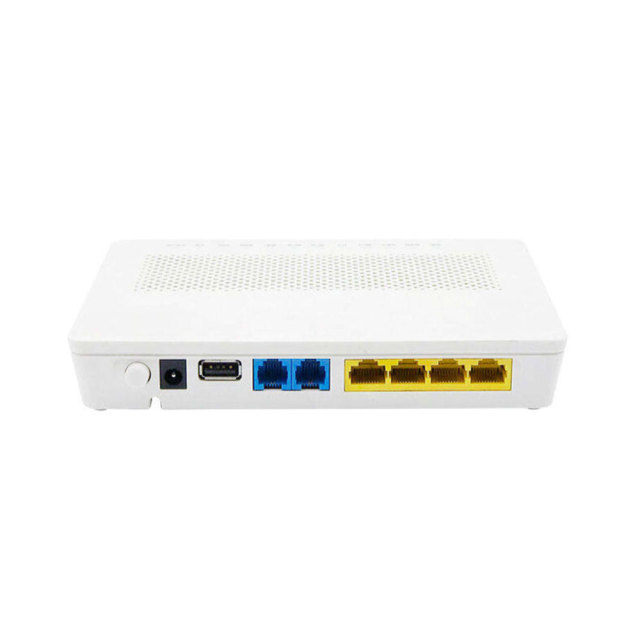

Applications of ONU
RF/CATV Port: Used for connecting to cable television.
Power Interface: Provides power connectivity.
USB Port: Typically a USB 2.0 interface.
LAN Port: Supports FE (10/100BASE-T) or GE (10/100/1000BASE-T) options.
Telephone Port: Also known as POT, VoIP, Voice, or FXS port.

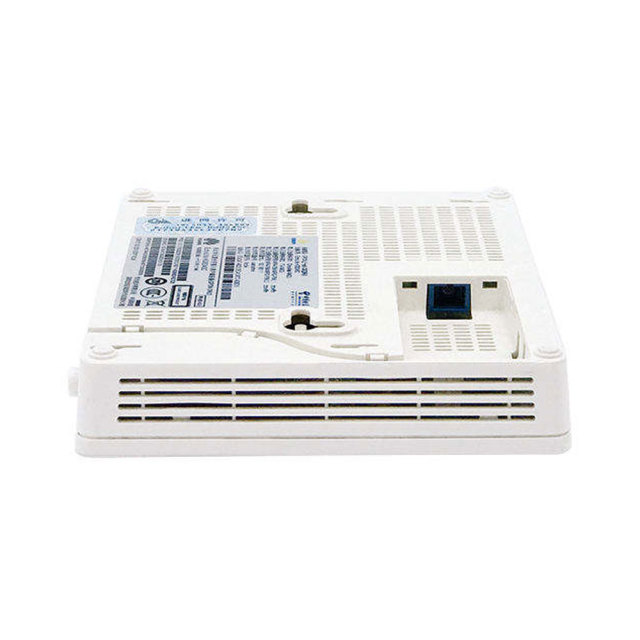

Optical Port: Connects to the Optical Distribution Network (ODN).
Antenna: Provides Wi-Fi connectivity, supporting 2.4 GHz Wi-Fi or dual-band 2.4 GHz/5 GHz Wi-Fi.
Where is the ONU located in FTTx?
Depending on the FTTx (Fiber to the x) technology used, the ONU can be placed in different locations. Different types of FTTx technologies include:
FTTC (Fiber to the Curb): The ONU is placed at a distribution point near the curb or in a cabinet close to user premises.
FTTB (Fiber to the Building): The ONU is installed in a communication cabinet or wiring closet inside the building.
FTTN (Fiber to the Node): The ONU is located at a remote node or access point, typically serving a neighborhood or cluster of users.
FTTH (Fiber to the Home): The ONU is placed inside the home of the end-user.
